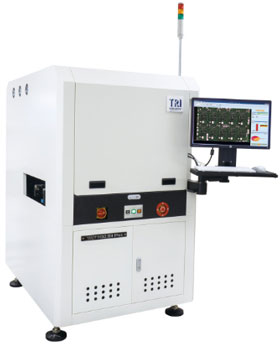

TRI德律TR7700 SII Plus在線AOI結合了流線型的外觀設計與先進的高精度攝像系統和TRI獨有的多相位光源，可捕捉到全尺寸PCB板前所未有的細致影像。
新一代檢測軟件結合了優秀的缺陷檢測和簡易型自動CAD編程，為一個可靠且經濟型的AOI檢測解決方案。
產品名稱：TRI7700SII 德律2D在線AOI
產品型號：TRI7700 SIII德律3D在線AOI
品牌：德律
產地：臺灣
TRI德律TR7700 SII Plus在線AOI性能優勢：
1：具彈性的高速動態或走停式取像AOI
2：智能化簡易編程介面
3：智能自動輸送帶可快速切換不同產品
4：具備多件與異物檢測功能
5：6 µm或10 µm或15µm光學分辨率
TRI德律TR7700 SII Plus在線AOI技術參數：
| Imaging Method | Dynamic Imaging or Stop-and-Go on select configurations |
| Top Camera | 4 or 9 or 12 Mpix high speed color camera (factory setting) |
| Angle Camera | N/A |
| Imaging Resolution | 6 µm, 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase RGB+W LED |
| 3D Technology | N/A |
| Max. 3D Range | N/A |
| Imaging Speed |
4 Mpix@ 10 µm Dynamic Imaging: 60 cm²/sec 4 Mpix@ 15 µm Dynamic Imaging: 120 cm²/sec 9 Mpix@ 10 µm Dynamic Imaging: 72 cm²/sec 12 Mpix@ 6 µm Dynamic Imaging: 40 cm²/sec 4 Mpix@ 10 µm Stop-and-Go: 4.5 FOV/sec 4 Mpix@ 15 µm Stop-and-Go: 4.5 FOV/sec |
| X-Axis Control | Ballscrew + AC-servo controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 µm |
| Max PCB Size |
TR7700 SII Plus@ 10 µm, 15 µm: 510 x 460 mm TR7700 SII Plus@ 6 µm: 400 x 400 mm TR7700 SII Plus DL@ 10 µm, 15 µm: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane TR7700 SII Plus DL@ 6 µm: 400 x 310 mm x 2 lanes, 400 x 400 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance |
10 µm, 15 µm: 25 mm [48 mm optional◎※] 6 µm: 25 mm ◎The air blow module does not apply to this option ※This option is only available for 4 Mpix camera. |
| Bottom Clearance |
10 µm, 15 µm: 40 mm [100 mm optional] 6 µm: 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor |
Inline Height: 880 – 920 mm * SMEMA Compatible |
| Component |
Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material |
| Solder |
Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
| WxDxH |
TR7700 SII Plus: 1000 x 1400 x 1650 mm TR7700 SII Plus DL: 1000 x 1500 x 1650 mm Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7700 SII Plus: 600 kg TR7700 SII Plus DL: 650 kg |
