| LTCL-250送板機 |
| 1)外型尺寸:L1100*W780*H1200±30mm |
| 2)專用鋁型材導軌及專用千鳥型塑膠鏈條 |
| 3)90W臺產剎車馬達驅動采用滾珠絲桿使Magazine步進升降 |
| 4)傳輸馬達采用15W定速臺產馬達 |
| 5)氣動夾件結構. |
| 6)Magazine規格為L355*W320*565mm |
| 7)PCB最大規格為L330*W250 |
| 8)方向: 右至左/左至右 |
| 9)升降平臺節距選擇為10，20，30，40 |
| 10)傳輸高度H=920±30 |
| 11)信捷PLC 可編程控制器控制 |
| 12)具有自動上板功能 |
| 13)操作控制面板為顯控真彩觸摸屏； |
| 14)氣動元件（推板氣缸位置用絲桿調節）亞德客汽缸，松下感應器 |
| 15)電源：220V 50HZ |
| 16)氣源：0.4-0.6MPa |
| 17)滿載儲板數量：50PCS |
| 18)電控箱一套 |

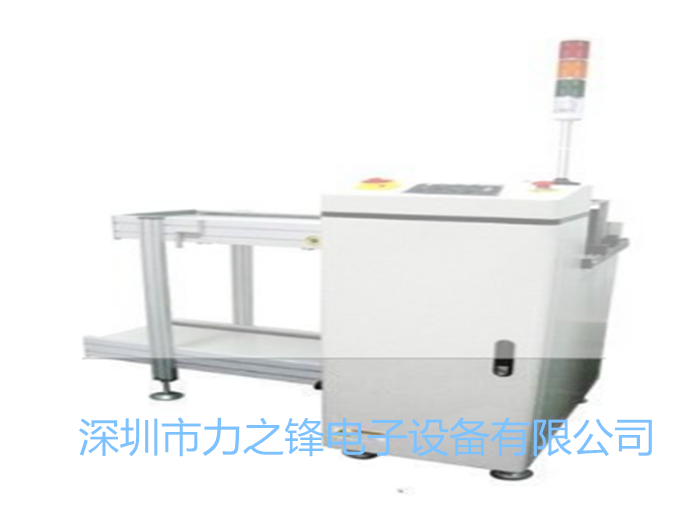

| LTCL-250 board feeder |
| 1) Overall dimension: L1100 * W780 * H1200± 30mm |
| 2) Special aluminum profile guide rail and special Qianniao plastic chain |
| 3) 90W production brake motor is driven by ball screw to lift Magazine step by step |
| 4) The transmission motor is a 15W constant speed platform motor |
| 5) Pneumatic clamp structure |
| 6) The specification of Magazine is L355 * W320 * 565mm |
| 7) The maximum specification of PCB is L330 * W250 |
| 8) Direction: right to left/left to right |
| 9) The lifting platform pitch is selected as 10, 20, 30, 40 |
| 10) Transmission height H=920± thirty |
| 11) Xinjie PLC programmable controller control |
| 12) With automatic board loading function |
| 13) The operation control panel is a display control true color touch screen; |
| 14) Pneumatic element (screw rod is used to adjust the position of push plate cylinder) Yadeke cylinder, Panasonic sensor |
| 15) Power supply: 220V 50HZ |
| 16) Air source: 0.4-0.6MPa |
| 17) Number of fully loaded storage plates: 50PCS |
| 18) One set of electric cabinet |
